Signature Series Multi-Vehicle Synthetic Automatic Transmission Fluid (ATF)

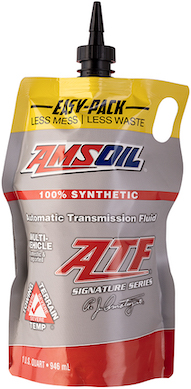

 Signature Series Multi-Vehicle Synthetic ATF
Product Code: ATF • Brand: AMSOIL

AMSOIL Signature Series Multi-Vehicle Synthetic ATF is engineered to outperform conventional automatic transmission fluids and exceed the performance requirements of most North American, European and Asian vehicles. This sophisticated formulation provides outstanding performance and protection in the severe operating conditions of today's most advanced transmission designs.

Click here for Las Vegas taxi cab field study report

Package sizes include:

1-Quart Easy Pack & Bottle
1-Gallon Bottle
2.5-Gallon Bottle
30-Gallon Drum
55-Gallon Drum

See Pricing or Place an Order
MSDSData
Sheet

Product Details

Product Applications

*** Transmission Fluid Evacuation Service Recommendation: Bulletin From Filter Manufacturers Council (16k PDF) ***

AMSOIL Signature Series Multi-Vehicle Synthetic ATF is recommended for transmissions, hydraulics, power steering systems and other applications that require any of the following specifications:

Product Application Specs

• Allison C-4, TES-389
• BMW 7045E, 8072B, LA 2634, LT 71141
• Chrysler ATF+4*, MOPAR* ASRC, 68089195AA, 68049954AA
• Ford MERCON*, MERCON* V, ESP-M2C166-H, FNR5, M2C924-A, XL-12
• GM DEXRON* II, DEXRON* III, AutoTrak II
• Honda/Acura ATF-Z1
• Hyundai/Kia SP-II, SP-III, Red-1
• IDEMITSU K17
• JASO 1A
• JWS 3309, 3314, 3317
• MAN 339 Type V-1, 339 Type V-2, 339 Type Z-1, 339 Type Z-2, 339 Type Z-3, 339F
• Mazda ATF-M III, ATF-MV, F-1
• Mercedes Benz 236.1, 236.2, 236.3, 236.5, 236.6, 236.7, 236.9, 236.10, 236.11, 236.81, 236.91
• Mitsubishi SP-II, SP-III, ATF-J2
• Nissan Matic-D, Matic-J, Matic-K, 402
• SAAB 3309
• Shell 3403, LA 2634
• Subaru ATF, ATF-HP
• Suzuki 3314, 3317
• Texaco ETL-7045E, ETL-8072B, N402
• Toyota Type T, T-II, T-III, T-IV
• Voith 55.6335, 55.6336
• Volvo 97340, 97341
• VW/Audi G 052 162, G 052 990, G 055 025
• ZF TE-ML 03D, 04D, 05L, 09, 11A, 11B, 14A, 14B, 14C, 16L, 16M, 17C, 20B, 20C, 21L

Product Description

Transmissions in commercial vehicles, SUVs, trucks and vans, particularly those used for hauling or towing are subjected to severe-service operation and increased heat. Elevated temperatures cause fluids to break down, allowing damaging metal-to-metal contact and the formation of sludge and deposits. The problem is worse in modern transmissions with more gears, clutch packs and narrow oil passages that require clean, high-quality fluid to achieve maximum performance and life.

AMSOIL Signature Series Synthetic Automatic Transmission Fluid is specifically formulated to withstand the rigors of heavy towing, elevated temperatures and challenging terrain. It remains fluid in sub-zero temperatures and provides reserve protection during heavy use and even abuse.

Proven in 180,000-mile, Severe-Service Taxi Fleet Field Trial

To demonstrate its effectiveness in severe service, Signature Series Multi-Vehicle Synthetic ATF was installed in Las Vegas taxi cabs. The vehicles routinely encountered demanding stop-and-go driving loaded with passengers and cargo, while the desert environment presented extremely hot ambient temperatures, placing enormous strain on the fluid. Following 180,000 miles, a transmission was selected for analysis. The Aluminum Beaker Oxidation Test (ABOT) is an industry standardized test used to determine a transmission fluid's oxidation resistance, which is a good indicator of its service life. Testing by an independent, third-party lab revealed that after 180,000 miles in severe service, Signature Series Multi-Vehicle Synthetic ATF resisted oxidation longer than required for new fluid to meet the Chrysler ATF+4 specification (see graph). Internal components, including the valve body and clutch plates (pictured), were virtually free of damaging sludge, deposits and wear, confirming the lubricant's high level of protection for severe-service applications.



Protects Against Thermal Breakdown

Signature Series Synthetic ATF is formulated with high concentrations of antioxidants, making it naturally heat resistant. It provides outstanding protection against sludge and varnish deposits that clog narrow oil passages and contribute to clutch glazing. After 180,000 miles in severe service, fluid analysis revealed Signature Series Multi-Vehicle Synthetic ATF contained 83 percent of its original oxidation inhibitors, proving its long-lasting resistance to thermal breakdown.

Outstanding Wear Protection

Varying speeds and loads causes torque multiplication and extreme stress on gears and bearings. AMSOIL formulated Signature Series Synthetic ATF with high film strength and premium anti-wear/extreme-pressure additives to help prevent wear during severe service. In the industry-standard FZG Gear Wear Test, Signature Series Multi-Vehicle Synthetic ATF that had been used for 180,000 severe-service miles achieved a "Pass" at stage 12, the highest stage. The results exceeded the Ford MERCON V and Chrysler ATF+4 specifications for new fluid, demonstrating the lubricant's long-lasting wear protection.

Cold-Temperature Fluidity

Cold, thick automatic transmission fluid lengthens shift times and reduces fuel economy. Signature Series Synthetic ATF is wax-free and delivers extraordinary cold-flow properties. It helps improve shift response, energy efficiency and warm-up times.

Friction Durability

Today's transmissions are smaller and must withstand higher horsepower and torque while delivering smoother shifts, all with longer fluid life recommendations. AMSOIL Signature Series Synthetic ATF is formulated with friction modifier additives that deliver outstanding clutch-holding capacity (static friction), torque-transfer ability (dynamic friction) and anti-shudder properties (slipping torque-converter clutches). Analysis reveals that after 180,000 miles in severe service, Signature Series Multi-Vehicle Synthetic ATF provides nearly identical friction properties as new fluid for smooth, reliable shifts.

SERVICE LIFE

Normal Service: Follow the vehicle manufacturer's normal-service drain interval.

Severe Service: Double the vehicle manufacturer's severe-service drain interval.

Change at the vehicle manufacturer's recommended drain interval outside U.S. and Canada.

HEALTH & SAFETY

This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS).

Click here to view the MSDS Data Sheet for AMSOIL ATF.

Keep out of the reach of children. Don't pollute. Return used oil to collection centers.

Technical Data

TYPICAL TECHNICAL PROPERTIES
AMSOIL Signature Series Multi-Vehicle Synthetic ATF
ATF
Kinematic Viscosity @ 100°C, cSt (ASTM D 445)7.5
Kinematic Viscosity @ 40°C, cSt (ASTM D 445)38.5
Viscosity Index (ASTM D 2270)165
Pour Point °C (°F) (ASTM D 97)-53 (-63)
Flash Point °C (°F) (ASTM D 92)234 (453)
Four Ball Wear Test @ 75°C, 1200 rpm, 40 kg, 1 hr, Scar, mm (ASTM D 4172)0.40
Brookfield Viscosity, cP (ASTM D 2983)9755
